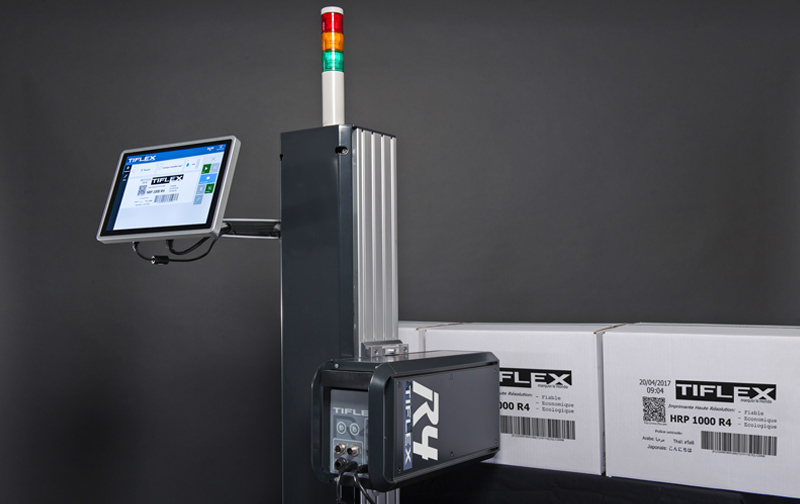

TIFLEX LARGE CHARACTER HIGH RESOLUTION INKJET PRINTER
Tiflex HRP R4 is mainly for large character marking such as on carton box, pallets, woods and others.
Suitable for Food, Cosmetics, Pharmaceutics, Logistics and Packaging Industry.
Features
- Versatile
- Best price for value
- Efficient and reliable
- User-friendly and easy to use
Printing Applications
Specification
|
Item / Model |
32-50 l |
32 C |
|
Print Area
|
Width 32mm |
Width 32mm |
|
Length 50mm |
Length 125mm |
|
|
Resolution |
12 dots/mm (300dpi) horizontally and vertically |
|
|
Print Speed |
Up to 400mm/second |
Up to 450mm/second |
|
Production |
300 prints/min (in one line) |
400 prints/min |
|
Thermal Ribbon |
600 meter (656 yds.) loaded ribbon |
|
|
Memory |
5000 text memory (USB standard) |
|
|
Power Supply |
110/220V 50/60Hz |
|
|
Air Supply |
min. 1 bar - max. 4 bar |
|
|
Weight (printer) |
5.6kg |
|
|
Dimensions |
175mm(H) x 190mm (W) x 200mm (D) |
|
|
Outputs |
machine on error (failsafe) - image ready, power on, print per minute etc…. |
|
|
Ribbon Widths |
22mm & 35mm (0.9" - 1.4") |
|
|
Operating Temperature |
5°C - 50°C (41°F - 104°F) |
|
|
Control Panel |
4,3" touch screen panel |
|
|
Programming |
||
|
Fields |
Real DATE/Time. Text, Barcode, 2D Barcodes , Logo, Counter (Serieal No), Shift Code, Shape, Currency |
|
|
Barcodes |
1D barcodes (EAN-13, EAN-8, CODE 128, CODE 39, ITF-2 of 5, ITF 14, CODABAR UPC-A, UPC-E) |
|
|
|
2D Barcodes (Datamatrix, QR Codes, PDF 41 7, Aztec code, Semacode, Macro PDF 417) |
|
|
Communications |
RS-232 (PC), LAN, USB / Multi language (12) support standard |
|
|
Pc Programmes |
SAYASIS Label Program |
|
