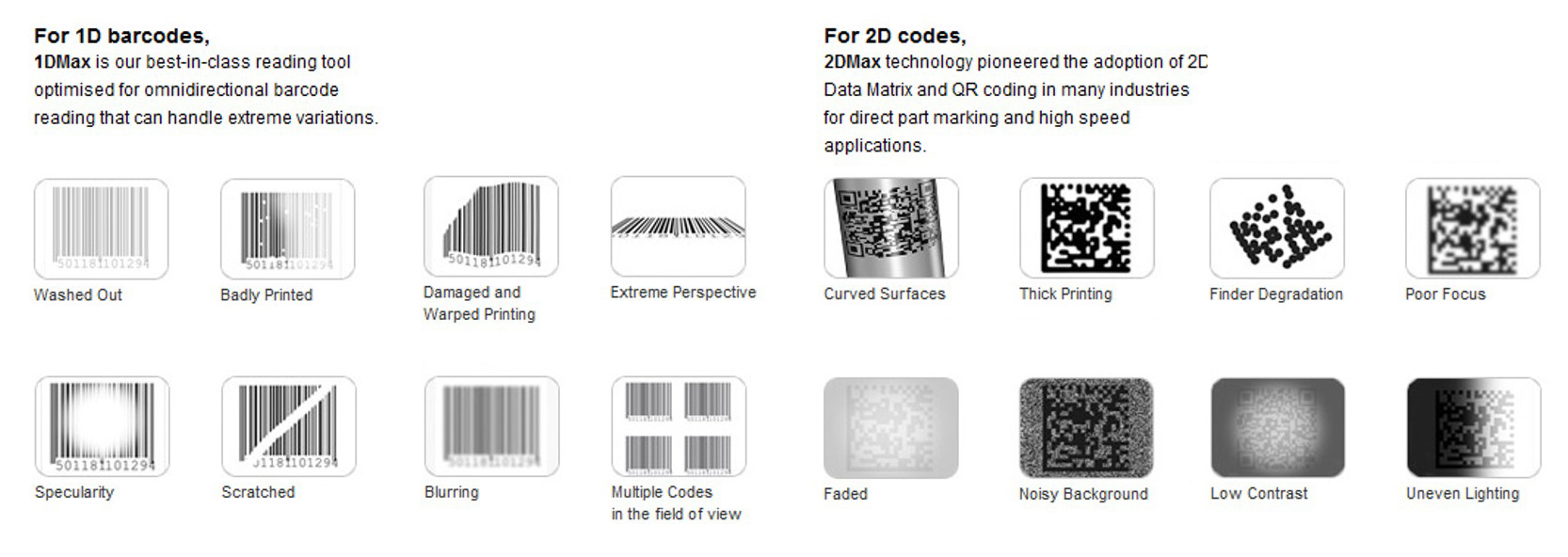

Cognex Barcode Reader offer the most advance technology available for 1-D barcode and 2D Data Matrix code reading enable solution for reading virtually for every type of codes on any surface at any speed.

oritronic cognex barcode reader barcodes

1. Fixed-Mount Barcode Reader

Cognex fixed-mount barcode readers offer excellent performance with patented Cognex 1-D barcode and 2-D matrix code reading software algorithms, flexible optics, lighting options, easy setup and quick deployment.


oritronic cognex barcode reader dataman 50 60 seriesDataMan 50/60 Series

The DataMan 50/60 is a compact barcode readers designed for 1-D oriented barcode reading. Small in size but exceptional in barcode reading performance, the DataMan 50L measure just 23.5mm x 27mm x 43.5mm with IP65 is an ideal for mounting in very limited space on production lines.

Both readers are equipped with Hotbars, a proprietary image-analysis technology that delivers the highest read rates.

Read More > DOWNLOAD PDF


oritronic cognex barcode reader dataman 150 260 seriesDataMan 150/260 Series

DataMan 150/260
offer powerful platform that runs the latest Cognex algorithms enable to achieve the highest possible read rates. This models offer straight or right angled configurations to fit into the tightest spaces.

The modular lighting and optics make it easy to change the reader lenses and lighting in the field and tune and trigger buttons allow for the setup of the applications all without a PC or HMI.

Read More > DOWNLOAD PDF


2. Handheld Barcode Reader

Cognex Handheld Barcode reader provide unmatched performance for direct part mark and label based applications.

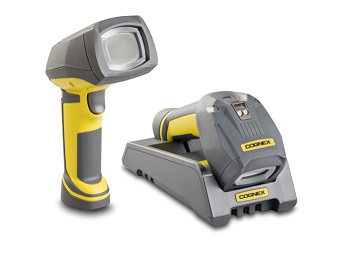

oritronic cognex barcode reader dataman 8600 seriesDataMan 8600 Series

DataMan 8600 readers are equipped with the most advanced barcode reading algorithms and are capable of reading the most challenging direct part marking codes on the widest variety of surfaces and using the widest range of marking method.

Patented lighting and liquid lens technology makes the DataMan most powerful and flexible handheld barcode reader. Ethernet communication enables direct communication between DataMan 8600 readers and industrial PLCs and factory networks.

Read More > DOWNLOAD PDF

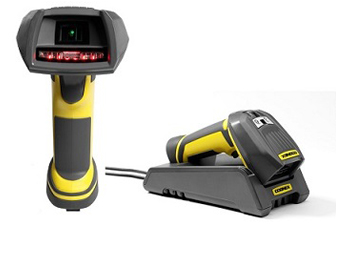

oritronic cognex barcode reader dataman 8050 seriesDataMan 8050 Series

DataMan 8050 readers
are equipped with Cognex’s world class barcode reading algorithms and designed to withstand harsh factory floor conditions.

The best-in-class algorithms decode even the most challenging barcodes quickly and easily and the flexible modular design ensures the DataMan 8050 readers are ready to meet ever changing communication needs.

Read More > DOWNLOAD PDF

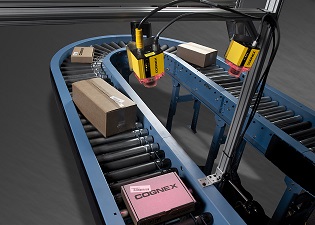

Application
oritronic cognex barcode reader application 01oritronic cognex barcode reader application 02oritronic cognex barcode reader application 03oritronic cognex barcode reader application 04
