1. Inspects Features - Checker vision sensor has an ability to inspect feature that other sensors can’t because it understand what it see.
  2. Inspects Multiple Part Feature Simultaneously - With the configuration software enable all experience levels user to easily set up the In-Sight application without programming or spreadsheet required.
  3. Overcomes Varying Part Position - The checker able to track all parts on a line in typical varying position without precise part handling.


There are wide ranges of checker vision sensor whereby offer you choices to choose the correct checker for your application.

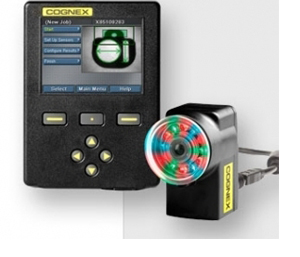

oritronic cognex checker vision sensors 3g seriesChecker 3G Series

  1. Industrial IP67
  2. Small size to fit into limited space
  3. No PC require
  4. Solves both presence or measurement sensor
  5. Standard & high resolution sensor
  6. Patented part detection


oritronic cognex checker vision sensors 4g seriesChecker 4G Series

  1. Industrial IP67
  2. Small size to fit into limited space
  3. No PC require
  4. Solves both presence or measurement sensor
  5. Standard & high resolution sensor
  6. Patented part detection

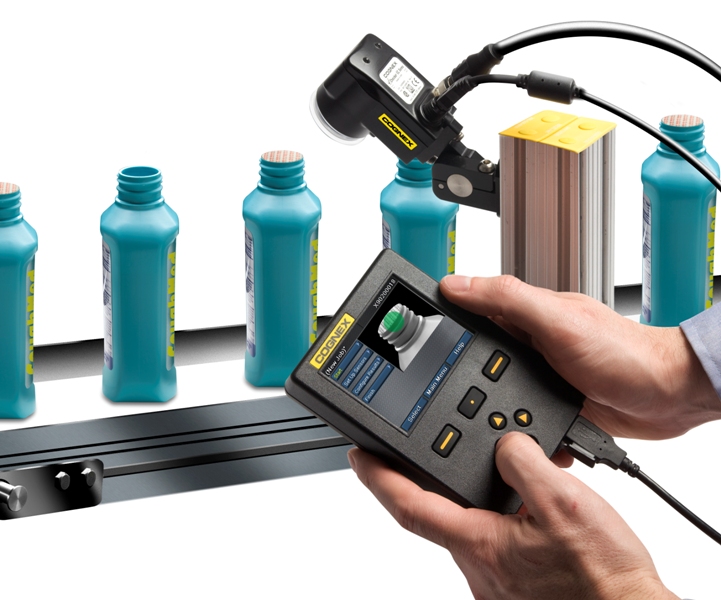

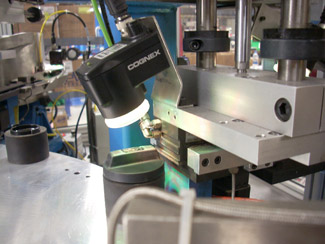

Application
oritronic cognex checker vision sensors application 01oritronic cognex checker vision sensors application 02oritronic cognex checker vision sensors application 03


Model Features 3G1 3G7 4G1 4G7
Part Finding Sensor
Inspection Sensors: Presence
Inspection Sensors: Measurement
Internal Tringgering
Pattern Retrain
Job Change 8 8 32 32
PC Software Setup
Sensor View Setup & Display
Encoder Based Part Tracking
Logic for Custom Outputs
Fast Inspection - 800 ppm
Inspection - Over 6000 ppm
Resolution (750 x 480)
PLC Communication-Ethernet/IP with AOP
PLC Communication-Profinet
Store Image to FTP
